Indigo 201 transmitter with exchangeable Humidity and Temperature probe, Display, Current loop, relays , 0.8%RH/0.1°C accuracy

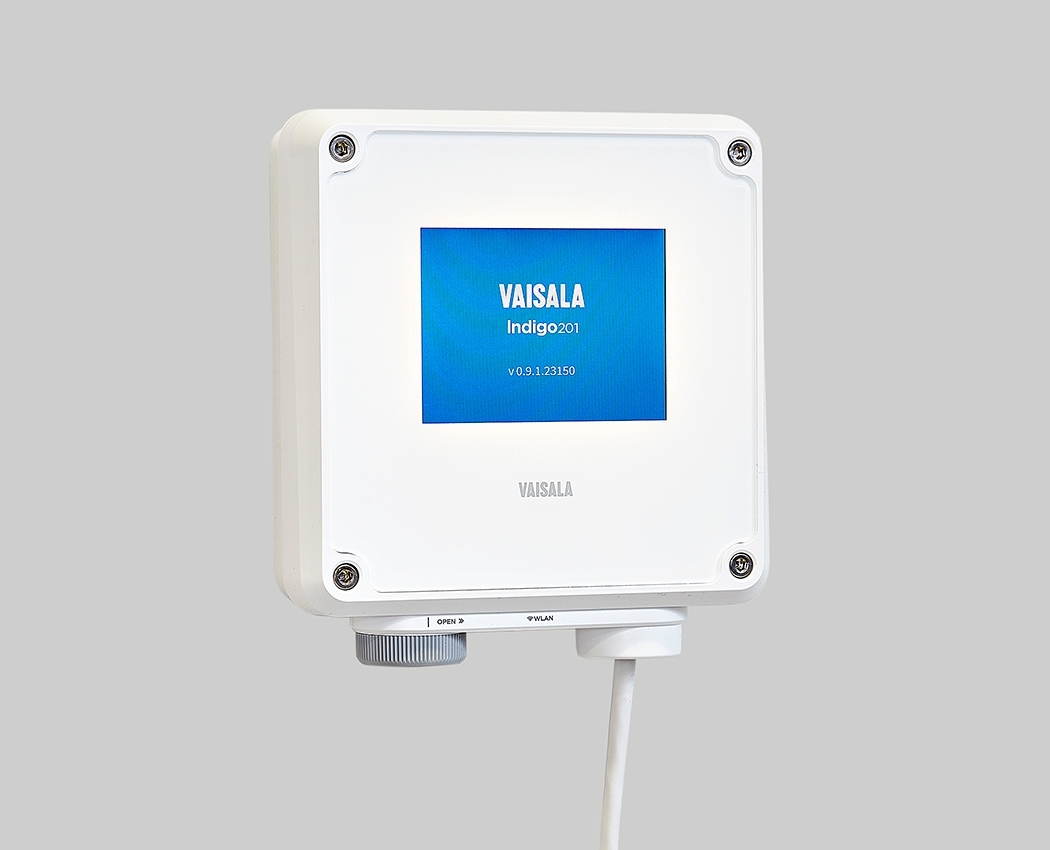

The Indigo 201 is an IP65-rated analog output transmitter, a host device for Indigo compatible probes with display, 4 ... 20 current loop output and two relays. Probes can be connected directly or with a remote cable (available as accessories) to the Indigo 201. User configuration and temporary viewing of data is easy and convenient with a wireless browser-based user interface.

The optional humidity and temperature probes (HMP4, HMP5, HMP7, HMP8, HMP9) and the temperature probe TMP1 are intelligent probes with 2m cable lenght. They are ideal for measuring humidity in demanding industrial applications. All humidity probes come with a traceable 5- point humidity calibration certificate. The probes are equipped with the latest HUMICAPR2 composite sensor. Sensor purge functionality improves measurement performance under applications where the probe is exposed to high chemical concentrations.

See all Indigo probes
See all Indigo Transmitter bodies

• TMP1: Process temperature measurement probe, -40 … +180°C
• HMP4: Process humidity and temperature probe for high pressures, -40 ..+180°C/100 Bar. M22x1.5 and NPT1/2” process fitting
• HMP5: Process humidity and temperature probe for high temperatures, -40 ..+180°C
• HMP7:Heated process humidity and temperature probe for high temperature and high humidity, -40 …+180°C

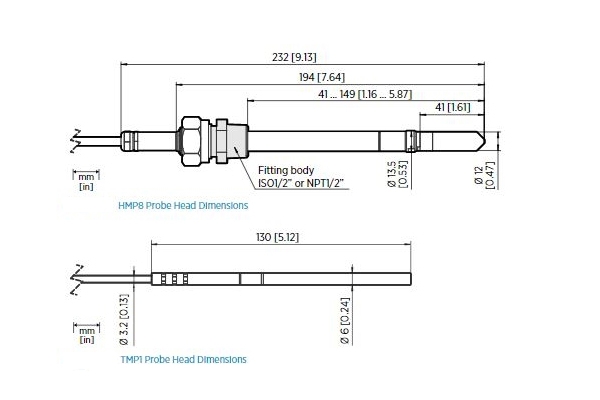

• HMP8: Adjustable insertion process humidity and temperature probe for high pressures, , -40 ..+180°C/40 Bar. ISO ½” or NPT1/2” process fitting
• HMP9: Compact humidity and temperature probe with fast response time, -40..+120 °C

The package includes:

• HMP or TMP probe
• Indigo 201 transmitter

Note that probe and transmitter may be shipped separately.

Watch the video to learn more about the Indigo 200 Series host device:
