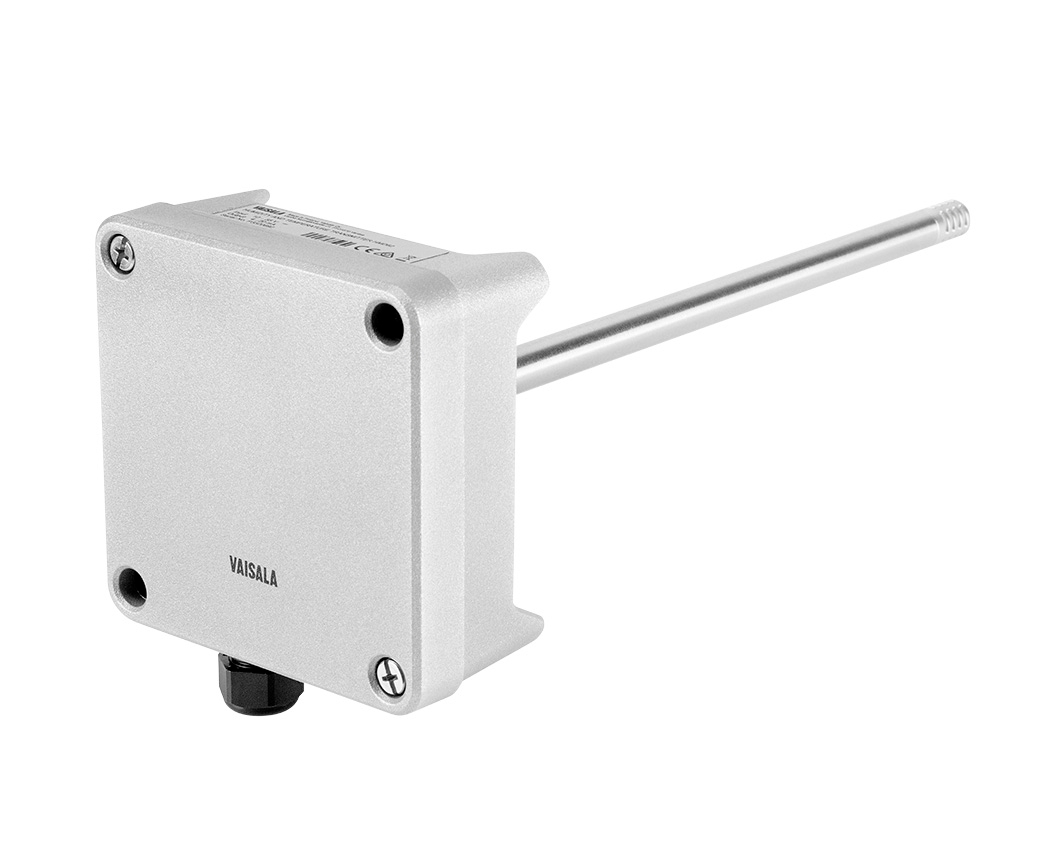

HMD62 Robust Humidity and Temperature Transmitter for demanding HVAC, Duct Model, Current Loop, 1.5% accuracy

Robust Design, Stability, and Reliability

The aluminium/stainless steel body is NEMA 4X/IP66 -rated and suitable for building sites and industrial settings. HMD60 series transmitters provide state-of-the-art stability and environmental resistance thanks to the Vaisala HUMICAP® R2 sensor.

Traceable Accuracy

HMD60 transmitters are always delivered with a traceable calibration certificate.

Field Configurable Outputs

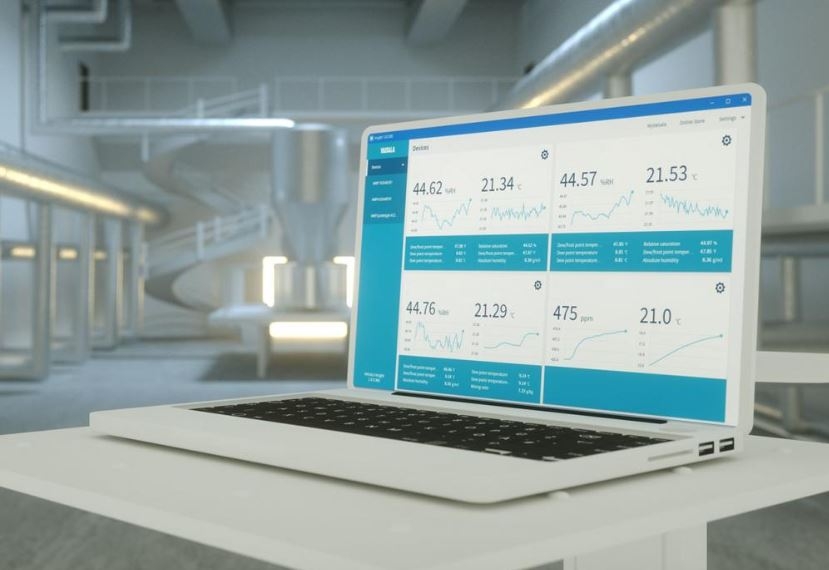

The analog HMD62 and TMD62 transmitter models use floating 4 … 20 mA loop powered output. The analog outputs are field configurable with easy parameter selection using DIP switches.For special scaling and other additional configuration and adjustment options, you can use the convenient Vaisala Insight PC software for Windows® (see www.vaisala.com/insight).
See all HMD60-series products

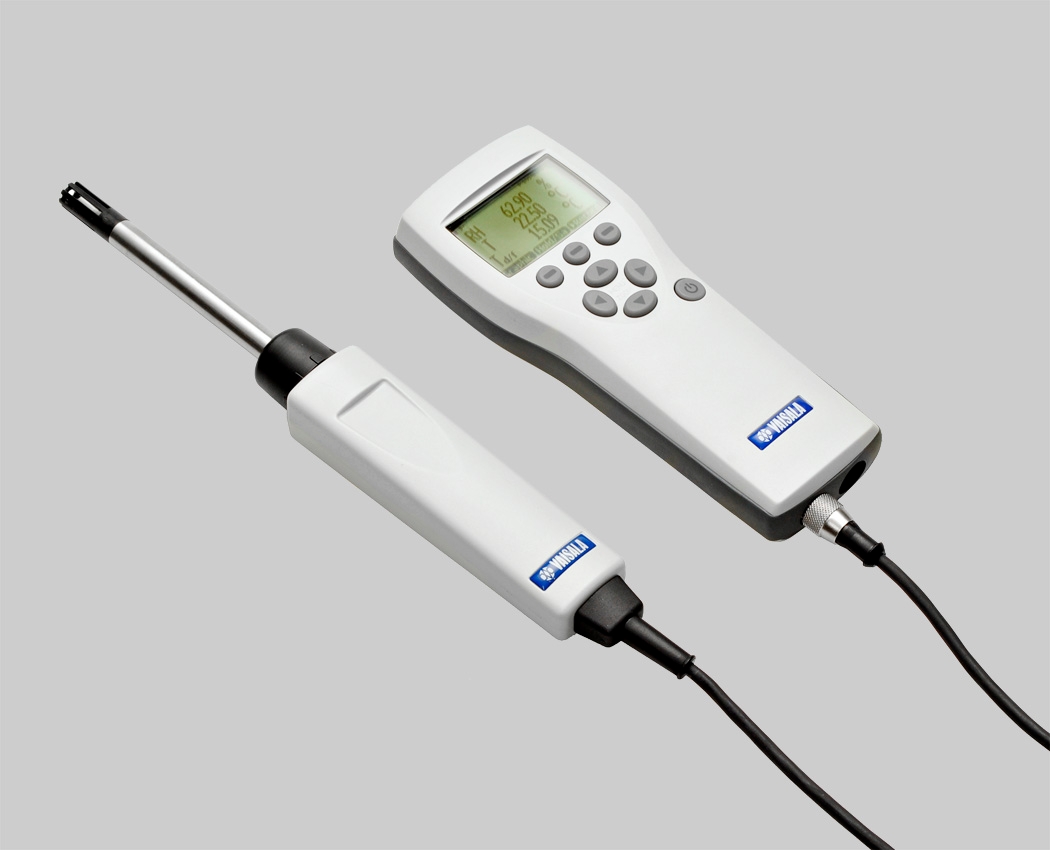

When required, HMD60 can also be intuitively field adjusted using trimmers or with the Vaisala HM70 hand-held meter.
The HMD62 replaces the popular HMD60Y and HMD60U.

The package includes:

• Calibration certificate (ISO9001 compliant, traceable)
• Multilingual quick guide
