GMW83 HVAC Temperature and CO2 Sensor for DCV. Wall Model, Voltage outputs.

The Vaisala GMW80 series CARBOCAP® carbon dioxide and temperature transmitters are wall-mount transmitters designed to fulfill the needs for CO2 measurements in standard demand controlled ventilation (DCV) and Indoor air quality monitoring (IAQ). The CO2 measurement is based on a second generation CARBOCAP® sensor, which uses a novel, silicon-based microchip emitter.

The internal reference in the CO2 sensor guarantees the best stability and operation also in constantly occupied buildings without frequent readjustments.

The CARBOCAP® sensors give correct CO2 measurements immediately when powered on. Proper operation can be verified immediately after snapping on the device cover.

See all GMW80-series CO2 transmitters

The package includes:

GMW83 transmitter

Watch the installation video of Vaisala's GMW80 transmitter series:

GMW83 HVAC Temperature and CO2 Sensor for DCV. Wall Model, Voltage outputs.

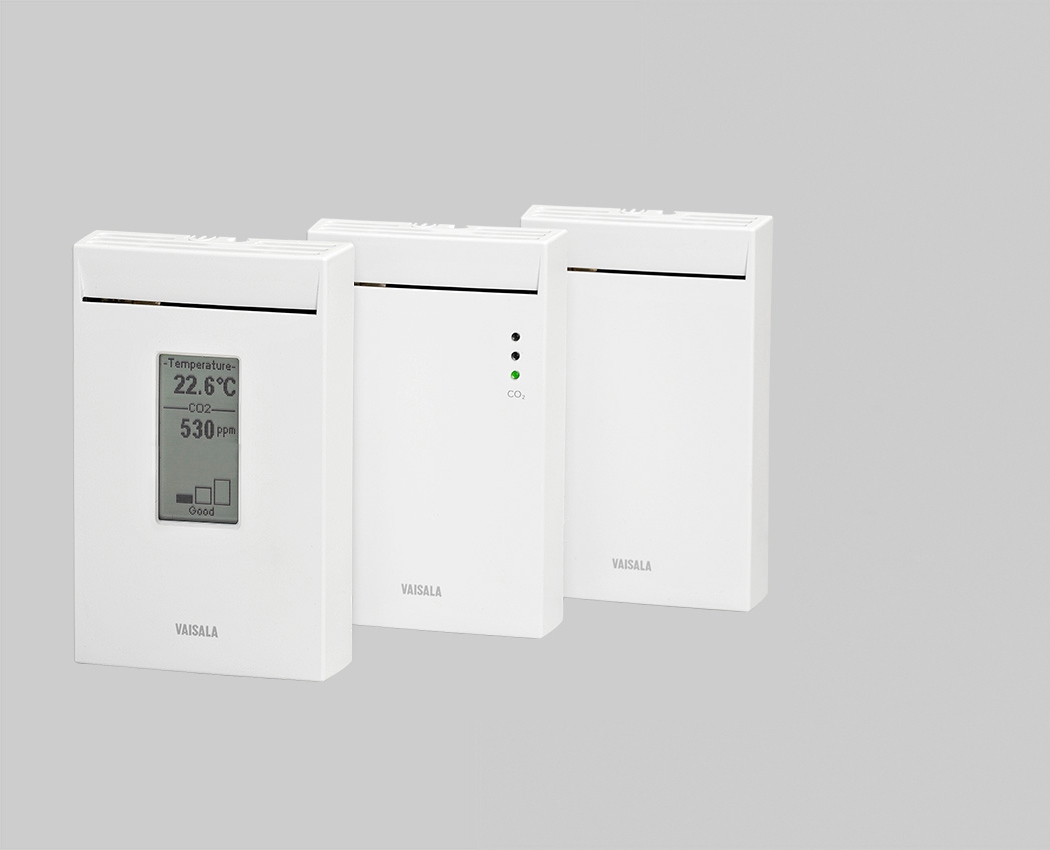

Models:

GMW83D CO2 and Temperature outputs, with display
GMW83A CO2 and Temperature outputs, includes visual CO2 level indication LED:s (green <800 ppm, yellow 800 … 1200 ppm, red >1200 ppm)
GMW83 with CO2 and T outputs

Standard delivery time for single unit: 1 week
About delivery times »

Warranty: 24 months
About warranty »

Choose product model

Part no. Choose options first

Quantity	Price
	€ + VAT

Compare

Detailed information

Measurement parameter(s)	Carbon dioxide Temperature
Measurement range	0 ... 2000 ppm CO2 0 ... +50 °C (+32 ... +122 °F) T 0 ... 95 %RH
Measurement accuracy	± (30 ppm + 3 % of reading) ±0.5 °C T ±3%RH (0 ... 80 %RH)
Operating temperature	0 ... +50 °C (+32 ... +122 °F)
Operating voltage	18 … 35 VDC, 24 VAC ± 20% 50/60 Hz
Analog outputs	0 ... 10 V
Housing classification	IP30
Links	See full specifications on Vaisala.com Download user guides and other product documents on Vaisala.com
